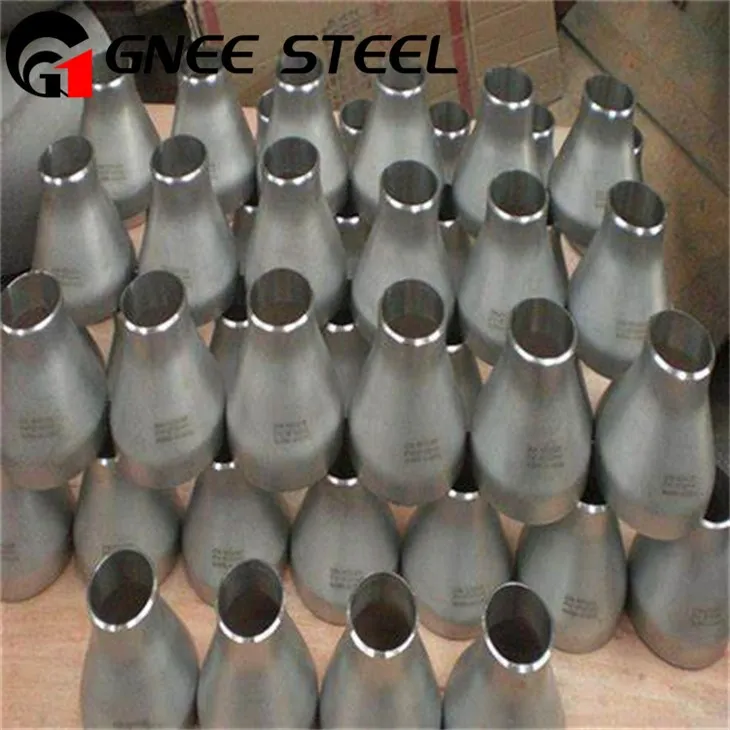

601 trubkani belgilang





Texnik xususiyatlari	ASTM B366 / ASME SB366
Baholar	601-yil
O'lchamlari	Asme / ansi B16.9
O'lchamlari	1/8 "nb dan 28" NB
Tur	Chirishsiz, payvandlangan, uydirma
Benming radiusi	R =1 d, 2D, 3D, 5D, 6D, 8D, 10D yoki odat
Devor qalinligi	Sx 5s, 10 yosh, 40 yosh, 80-yillar, XXlar yoki odat (50 mm gacha)





601 ta fitnalar kimyoviy tarkibi

Element	Og'irligi (%)
Nikel (ni)	58.0 - 63.0
Xrom (CR)	21.0 - 25.0
Temir (Fe)	Qoldiq
Uglerod (c)	Maks . 0.10
Marganets (mN)	Maks . 1.0
Kremniy (si)	Maks . 0.50
Oltingugurt (lar)	Maks . 0.015
Mis (cu)	Maks . 1.0
Alyuminiy (al)	1.0 - 1.7



N06601 armaturalarning mexanik xususiyatlari

Mulk	Qiymati
Zichlik	8.1 g / sm³
Erish nuqtasi	1411 daraja (2571 daraja f)
Mustahkamlik chegarasi	550 MPa (80,000 psi) min
Kuch berish kuchi	205 MPa (30,000 psi) min
Cho'zish	30% min
Qattiqlik (brinell)	130 HB



601-chi payvandlashning fizik xususiyatlari

Xususiyatlar	Qadriyatlar
Eritilgan diapazon	daraja f	2480-2571
	daraja	1360-1411
Muayyan issiqlik	70 daraja F, BTU / LB - ilmiy fabrika f	0.107
	21 daraja, j / kg - ilmiy daraja	448
Zichlik	lb / in.	0.293
	Mg / m³	8.11
O'tkazuvchanlik	200 UTISET (15.9 ka / m)
	76 daraja F (24 daraja)	1.003
	-109 diplom f (-78 daraja)	1.004
	-320 daraja f (-196 daraja)	1.016
Kuri harorati	daraja f	<-320
	daraja	<-196



601 tee harorati

Harorat oralig'i
daraja	daraja f
870 - 1230	1600 - 2250





Od (mm)	Pube Wt (mm)	Sch
13.72	1.65	10S
17.15	3.20	80S
21.34	2.11	10S
42.16	2.77	160
13.72	2.24	40S
21.34	2.77	40S
168.28	18.26	160
219.08	18.23	120
33.40	3.38	40S
42.16	2.77	10S
48.26	3.68	40S
60.33	8.74	160
73.03	5.16	40S
114.30	3.05	10S
73.03	3.05	10S
88.90	5.49	40S
219.08	12.78	80S
101.60	5.74	40S



601 albitth gightwtits shtatlar hajmi

Quvur ftting shakllari	Quvurning o'lchami hajmi		Paytni payvand qilish jadvali	O'lcham standartlari
	Chodirsiz trubka	Payvandlash quvuri
Nosozlikning kamayishi	1/8 "NB 8" NB		SCH 5, SCH 5S, SCH 10, SCH 10, sm 30, sm 30, sm 80, smxif, sm xx, sm xx, sm xx, sm xxs, sm xx, sm xx, sm xx, sm xxs, sm xx, sm xxs, sm xxs, sm xxs, sm xxs, sm xxs, sm xxs, sm xxs, sm xxs, sm xx, pletlangan armatura qilingan taqdirda	Asme B16.9, ANSI B16.9, Asme B16.28, Ansi B16.28, Ansi B16.25, MS SP 75
Nosozliklar	1/8 "nb 24" NB	Upto 42 "nb
Nosozlik qisqaradi	1/8 "nb 24" NB	Upto 42 "nb
Noto'g'ri qopqoq	1/8 "nb 24" NB	Upto 42 "nb
Noqulay suralar	2 1} / 16 "30"
Naslli tirsaklar - 45, 90 va 180 daraja	1/8 "nb 24" NB	Upto 42 "nb
Nosozlik	1/8 "NB 8" NB





Og'irligi (kg)	O'lchov (mm)
18.0	2.0 X 1219 X 3048
10.8	1.2 X 1219 X 3048
8.1	0.9 X 1219 X 3048
6.3	0.7 X 1219 X 3048
28.6	3.18 x turli xil Ann
27.0	3 X 1200 X 3000
14.4	1.6 X 1200 X 3048
4.5	0.5 X 1000 X 2000



Werkstofoff nr . 2.4851 stub vazn jadvalini tugatadi

Nps	Vazn	W.T		O.D
	LB / FT	ichida	mm	ichida	mm
3	7.576	0.216	5.486	3.500	89
	10.253	0.300	7.620
1 1/2	2.718	0.145	3.683	1.900	48
	3.361	0.200	5.080
1	1.679	0.133	3.378	1.315	33
	2.172	0.179	4.547
3/4	1.131	0.113	2.870	1.050	27
	1.474	0.154	3.912
1/2	0.851	0.109	2.769	0.840	21
	1.088	0.147	3.734
2	3.653	0.154	3.912	2.375	60
	5.022	0.218	5.537
1 1/4	2.273	0.140	3.556	1.660	42
	2.997	0.191	4.851
2 1/2	5.793	0.203	5.516	2.875	73
	7.661	0.276	7.010





601 trubkaning turlari

N06601 qisqa radiusning qaytish egri

ASTM B366 N06601 qisqa radius trubkasi

Nikr23fe uzoq radius qayiqlar

601 Tasakni kamaytirish

WNR 2.4851 xoch

ASTM B366 stublari tugaydi

Werkstofoff nr . 2.4851 nipel

ASTM sb 366 teng teshi

N06601 trubkasi

ASTM B366 N06601 kontseptsiya yo'nalishi

Nikr23fe yoqasi quvuri

601 ga aylantirish



Gnee po'latida 601 ta quvurli varaqlar: yumshatish, eritma + qarish. Bundan tashqari, Gnee po'latida issiq ishlaydigan va sovuq pog'ona va sovuq rasmlar mavjud.



Issiq teglar: 601 quvurli qotim, Xitoy kontreynerlari 601 quvurli etkazib beruvchilarni etkazib beruvchilarga
